NEXEDGE® VHF/UHF Digital & FM Base Units

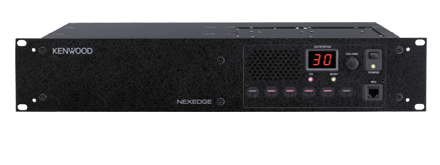

Kenwood NXR-710 / 810 Features
- Frequency Range
- VHF: 136-174 MHz (NXR-710)
- UHF: 450-520 MHz, 400-470 MHz (NXR-810)
- VHF: 136-174 MHz (NXR-710)
- RF Output
- VHF: 50 W @ 50% duty, 25 W @ 100% duty (NXR-710)
- UHF: 40 W @ 50% duty, 25 W @ 100% duty (NXR-810)
- Repeater Operation
- Duplex / Simplex Base Operation
- 30 CH Scanning Base
- Two-Digit LED Display
- 6 Lighted Programmable Function Keys
- Front Panel Speaker
- Rear External Speaker Output (4 W Audio)
- Volume Control
- Microphone Jack
- Program Interface
- Remote Termination Interface
- Programmable AUX I / O's
- RF Power Down Detect
- DTMF Front Panel PF Key Control
- DTMF AUX Output Control
- DTMF AUX Input Monitoring
- External Frequency Reference (10 MHz) Connectivity
- Windows® PC Programming
- Flash Firmware Upgrading
Digital Features
- NXDN® Digital Air Interface
- Conventional IP Network
- AMBE+2™ VOCODER
- 6.25 & 12.5 kHz Channels
- Mixed FM / Digital Operation
- NXDN® Scrambler Built-in
- 16 RAN Repeater Control Built-in
- 1,000 GIDs Per Site
- 1,000 UIDs Per Site
- Individual & Group Selective Call
- All Group Call
- NXR Over-the-air Alias
Analog Features
- VHF: 25, 20*1 & 12.5 kHz Channels
- UHF: 25, 20*1 & 12.5 kHz Channels
- Built-in Scrambler
- 16 QT / DQT Repeater Control Built-in
- Hang Timer / Time Out Timer / CW ID
- External FM Controller Interface
- EIA Voter Tone Generation
- External LTR® Controller Interface
- External MPT Controller Interface
